Description

The HEX ezCAN Accessory Manager:

The HEX ezCAN lets you add any 12-volt electronic accessory to your motorcycle. It lets you control and operate accessories by connecting to your bike, then listening to and obeying data or electrical commands.

The Good News:
HEX ezCAN is a highly configurable, seamless plug-and-play solution.

And now, the Really Good News:
HEX ezCAN:

• Does not require any wires to be cut on the motorcycle.
• Does not require permanent changes to the motorcycle. The motorcycle can be reverted to 100% original specification at any time.
• Does not affect the motorcycle’s warranty in any way or form.

HEX ezCAN lets you power and configure installed accessories with complete safety, and operate the accessories using your bike’s existing controls.

The Denali D7PRO Auxiliary Lights:

The D7 PRO features a split dual-circuit design that allows fully independent on/off and dim of a center flood beam and outer spot beam. Use our revolutionary HEX ezCAN to effortlessly control all lighting functions from a single halo dimmer switch or the vehicle OEM handlebar controls.

Add to that, the patent pending X-Lens system which allows you to change the center flood or DRL beam color to white, amber, or selective yellow on-the-fly giving riders more flexibility and functionality than ever before.

Last but not least, the D7 PRO has a “DRL Boost Mode” which allows you to run the center optics as a dim DRL or dial it up to 100% up to create a high-power flood beam. The innovative center optics can also flash in sync with your turn signals when paired with the amber X-Lenses.

D7 PRO Pod Features

• HiDrive LEDS 11,900 Lumens Per Pod – Seven 14-Watt LEDs combined with our proprietary TIR optics make this the brightest light under 4.5” ever released
• Dual-Beam Technology – Independent control (and dimming) of center flood beam, outer spot beam, or all-on hybrid beam
• Modular Snap-On X-Lens – Enables customizable beam shape and color on-the-fly. Interchange able center flood beam color in white, amber, or selective yellow
• DRL Boost Mode – Drive the center LEDs as a low intensity DRL, or dial up the power to generate a massive high-intensity flood beam
• Integrated Turn Signal Mode – Run the center flood optics as an amber DRL or flood light that will flash in sync with the vehicle turn signals

Connecting your Denali D7 PRO

• HEX ezCAN Compatible – Control both circuits and unlock over 20 features & settings using the HEX ezCAN accessory manager. Simply plug your D7 PRO light into the HEX ezCAN (all the connectors are capatible), and use the HEX ezCAN application to configure your ideal setup.

D7 PRO Specs (Single Pod)
LED’s: (7x) 14 Watt Cree XML3
Power Draw: 98 Watts / 8 Amps
Raw Lumens: 11,900
Spot Beam Distance: 1250 Feet (380 Meters)
Flood Beam Width: 250 Feet (75 Meters)
DataDim™ Compatible: Yes
Operating Voltage: 9-32 VDC
Pod Size: 4.4″ Round x 2.9″ Deep
Pod Weight: 1.8 lbs
IP68 & 69K Waterproof, Submersible, & High-pressure Spray
E Mark Approved Spot Lens (ECE R112 Driving Beam)

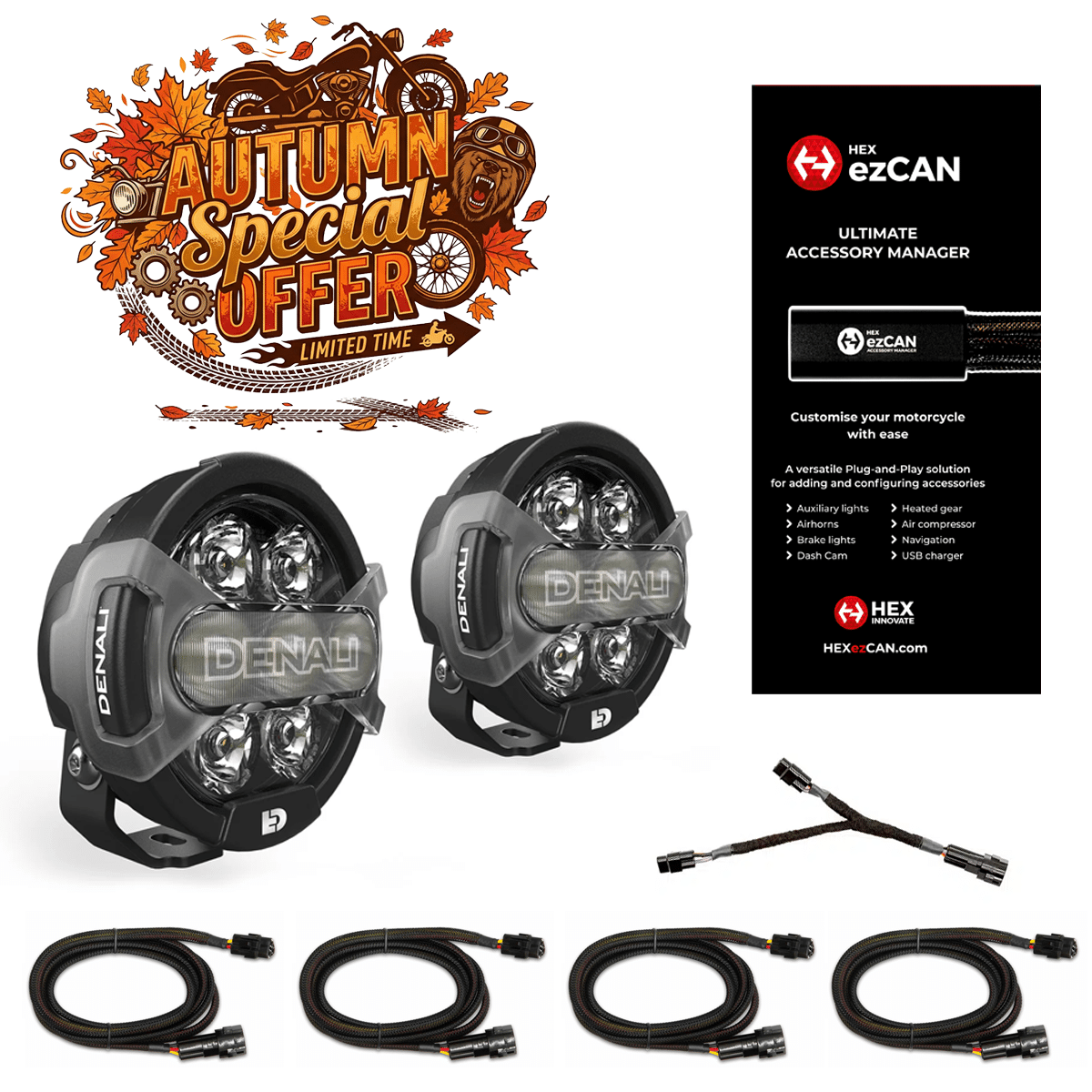

D7 PRO Light Pod Pair (DNL.D7P.050.K) includes:

• (2x) D7 PRO Light Pods (w/ mounting hardware)
• (6x) X-Lenses (2 Clear, 2 Amber, & 2 Selective Yellow)
• (2x) 2-into-1 Single-Circuit Wiring Adapter
