Description
Next-Gen Integration with ezBUS™ Technology

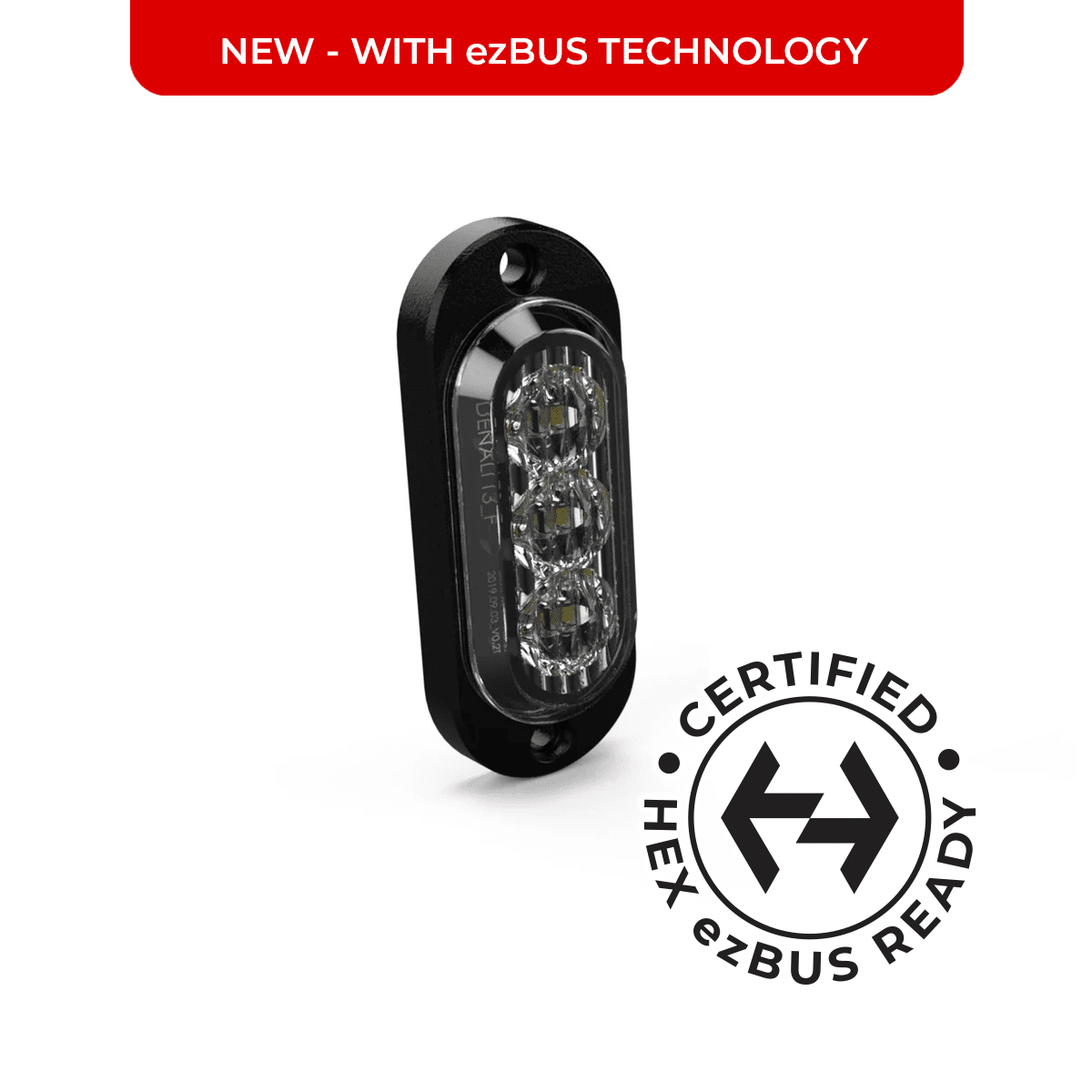

The DENALI Smart T3-S Rear Switchback LED Turn Signal Pod redefine what’s possible in motorcycle visibility. While maintaining the sleek, low-profile aesthetics of the classic T3 series, the “Smart” version introduces ezBUS™ Technology, allowing for a revolutionary single-wire communication setup that simplifies installation and maximizes customization.
Intelligent Integration: The ezBUS Advantage
The Smart T3-S pods are designed to live on the White Circuit of your HEX ezCAN or DENALI CANsmart Accessory Manager (this product is not supported by the Lone Rider MotoCAN). This single circuit can now host up to 15 ezBUS-ready accessories, drastically reducing wiring clutter and complexity.
How to get started:
Configure: Set the “White Circuit” as an ezBUS Output Circuit in the Accessory Manager software panel.
Discover: Tap the Hamburger Icon (top right) and select Scan for ezBUS devices.
Assign: Click the arrow next to the ezBUS icon to enter the accessory setup. Scroll through your connected devices and assign each Smart T3 pod as either a Left or Right unit.
Ultimate Customisation & Safety
Once detected, the Accessory Manager unlocks a dedicated Smart T3 function panel. You have granular control over your lighting profile:
Adjustable Intensity: Independently set brightness levels for Red Running, Red Brake, and Amber Turn Signal functions.
Brake Modulation: Choose between a Solid brake light or a high-visibility Pulsing flash pattern.
Fog Light Sync (New!): A cutting-edge safety feature exclusive to ezBUS. Program your Smart T3 pods to automatically increase intensity when your Fog Lights are activated, ensuring you remain visible in the harshest conditions.
Note: To utilise the full “Smart” feature set, a compatible HEX ezCAN or DENALI CANsmart Accessory Manager updated with the latest ezBUS-compatible firmware is required.
Features
- Switchback Functionality: Red Run/Brake & Amber Turn Signal
- Run/Brake Circuit: 25% Run, 100% Brake
- 180-degree viewing angle
- Six high power LEDs (per pod)
- Low-profile design
- Easy connection using the ezBUS Technology, in the HEX ezCAN or DENALI CANsmart Accessory Managers
- E-Mark approved run, brake and turn signal
Specs
Total Power Draw: 0.06A Run, 0.25A Brake, 0.55A Turn Signal
Input Voltage: 12V DC
Size: 2.9″ x 1.13″ x 0.5″
Weight: 13.5 Grams
Raw Lumens: 870
Waterproof: IP67
What’s In The Box?
- (1x) Rear Signal Pods
- (2x) Mounting screws
Includes 1x HEX ezBUS JWPF to MT Adaptor Cable, part number H1-EZA-004
