HEX Front Auxiliary Light Brackets HONDA Type 1, for fitment to Honda CRF 300L / 300L Rally

Description

HEX Front Auxiliary Light Brackets – Honda Type 1

Upgrade Your Adventure. Illuminate Your Ride.

Take your Honda CRF300L or 300L Rally to the next level with the HEX Front Auxiliary Light Brackets (Honda Type 1). Designed specifically for dual-sport and adventure riders who demand reliability when the pavement ends, these brackets offer a rock-solid, universal mounting solution for your auxiliary lighting setup.

Positioned perfectly on either side of the headlight, they maximize your nighttime visibility and daytime presence without cluttering your cockpit.

Why Choose HEX Brackets?

• Premium Quality Materials & Finish: Built without compromise right here in the United Kingdom. While other brands use inferior mild steel, HEX brackets are crafted from high-grade stainless steel for superior durability. They are finished with a premium, weather-resistant powder coating to prevent rust, corrosion, and paint bubbling.

• Integrated Cable Management: Safety and aesthetics go hand-in-hand. Features built-in slots that allow you to securely cable-tie your auxiliary light wiring directly to the bracket. This delivers a clean, professional look and drastically reduces the risk of cables snagging on branches or trail debris.

• Affordable & Accessible: Premium engineering doesn’t have to mean a premium price tag. By leveraging local UK manufacturing and an efficient logistics network, we deliver elite-tier protection and functionality at a highly cost-effective price point.

What’s In The Box?

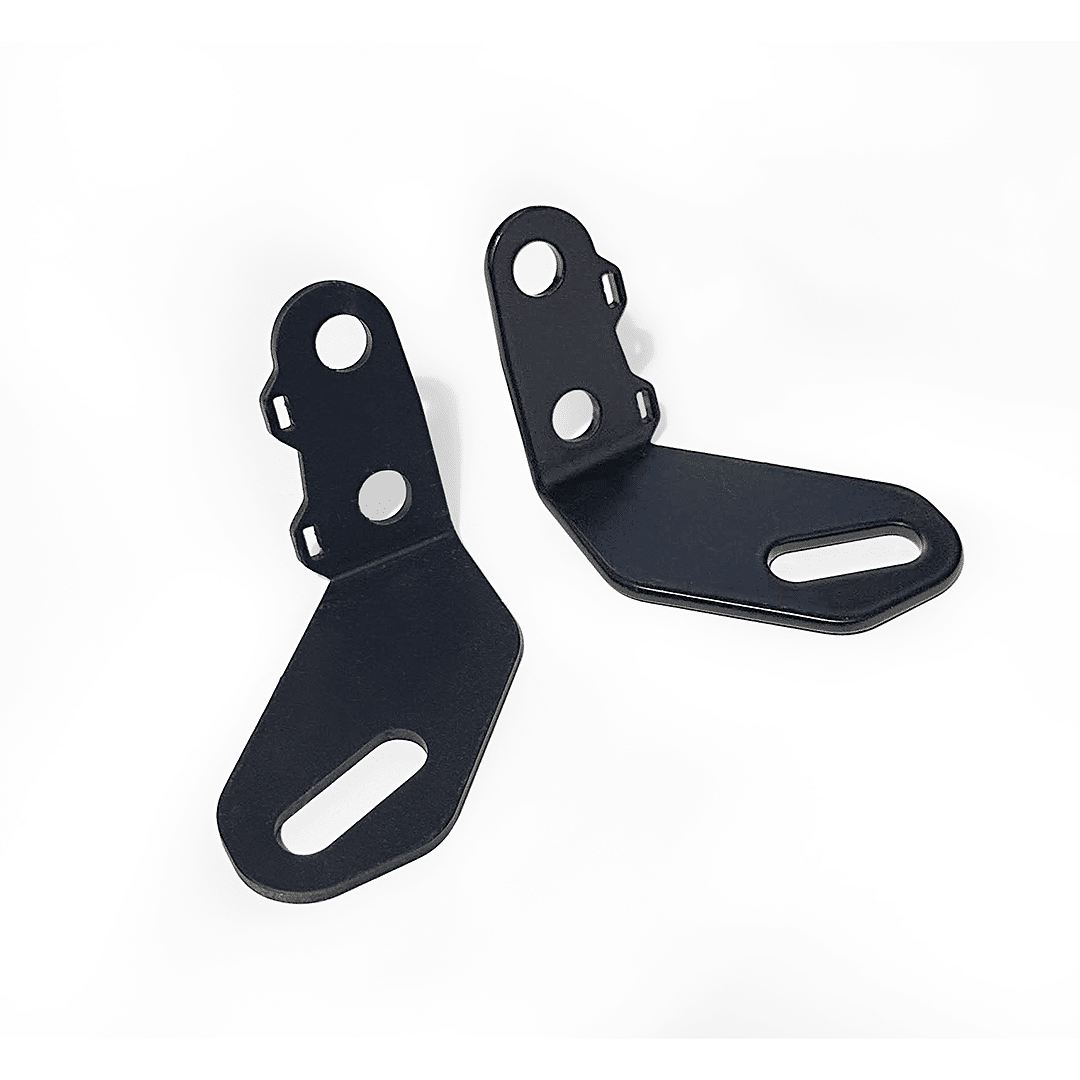

• • (x2) HEX Auxiliary Light Mounting Brackets – HONDA Type 1 (Left and Right side)

Material: Stainless Steel with satin ceramic coating – the same the exact technology used in military and tactical firearms. For incredible strength and durability.

Installation Instructions

Mounting your new HEX brackets is a quick and straightforward process that requires only basic hand tools.

⚠️ Safety First: Ensure your motorcycle is parked on a flat, level surface on its side stand or a paddock stand, and the engine is completely cool before beginning installation.

Step 1: Locate the Mounting Points

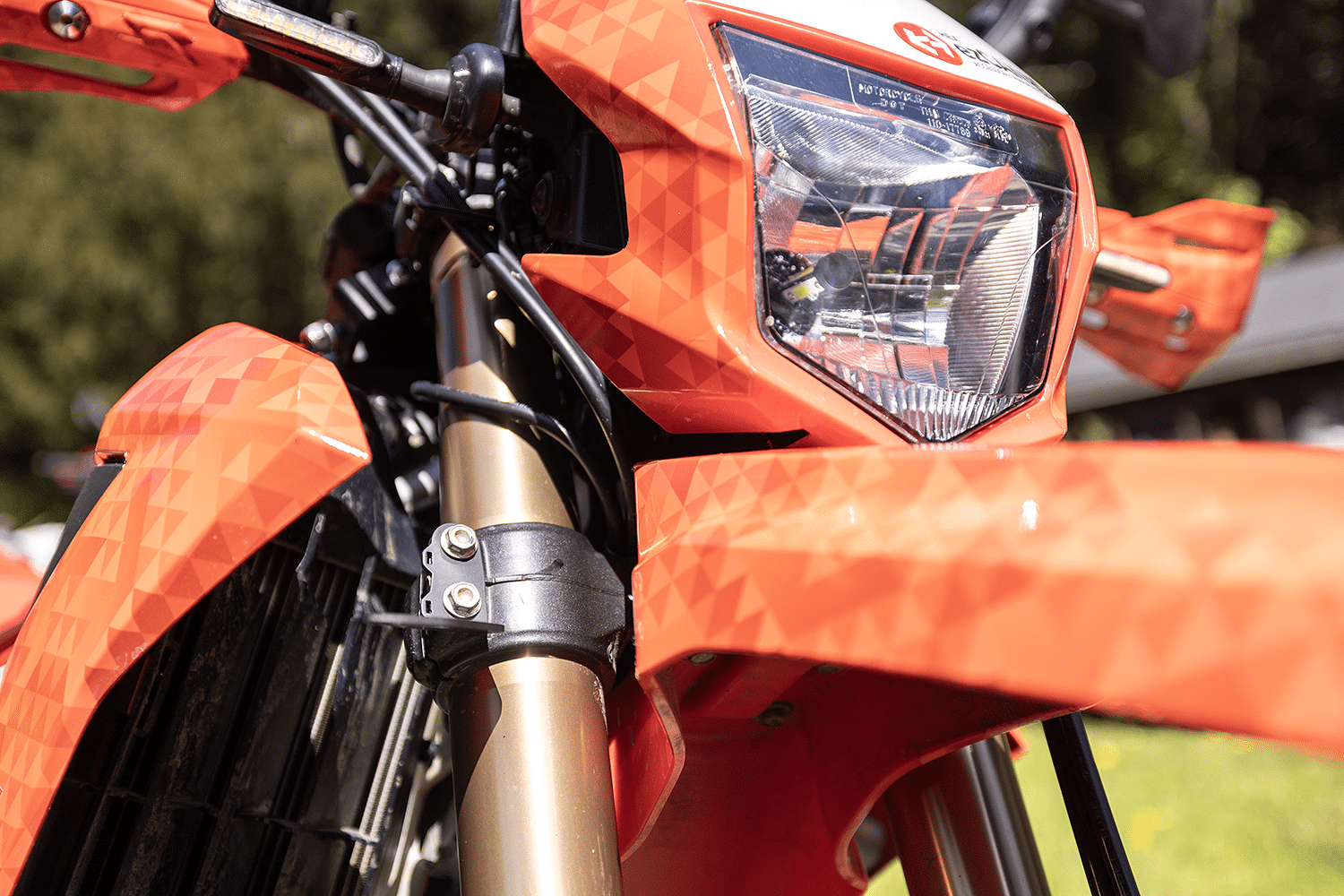

Look at the front forks of your Honda CRF300L/Rally. Locate the Original Equipment (OE) pinch bolts that secure the front fork suspension tubes to the bottom headstock (lower triple clamp).

Step 2: Remove the OE Bolts

Working on one side at a time, use the correct size socket or wrench to remove the OE bolts from the bottom headstock.

• Note: Do not worry, removing these bolts one side at a time will not cause the fork tubes to move or slide.

Step 3: Position and Mount the Bracket

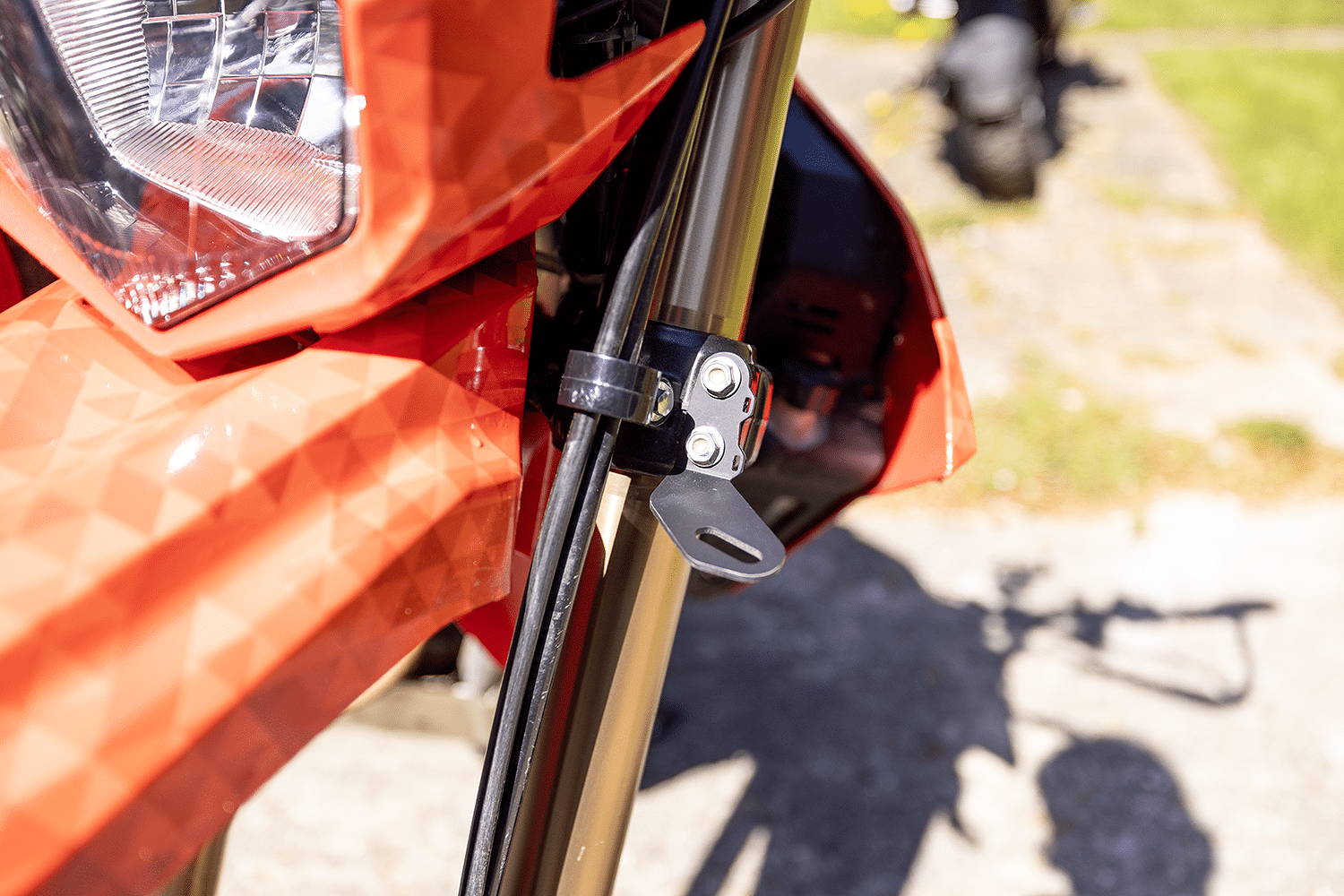

Align the holes on the HEX Front Auxiliary Light Bracket with the factory mounting holes on the lower headstock. Re-insert the OE bolts through the bracket and into the headstock.

Step 4: Torque to Spec

Hand-tighten the bolts first to ensure they are not cross-threading. Once aligned, tighten the bolts securely.

• Recommended: Refer to your Honda factory service manual for the exact torque specification for the lower triple clamp pinch bolts.

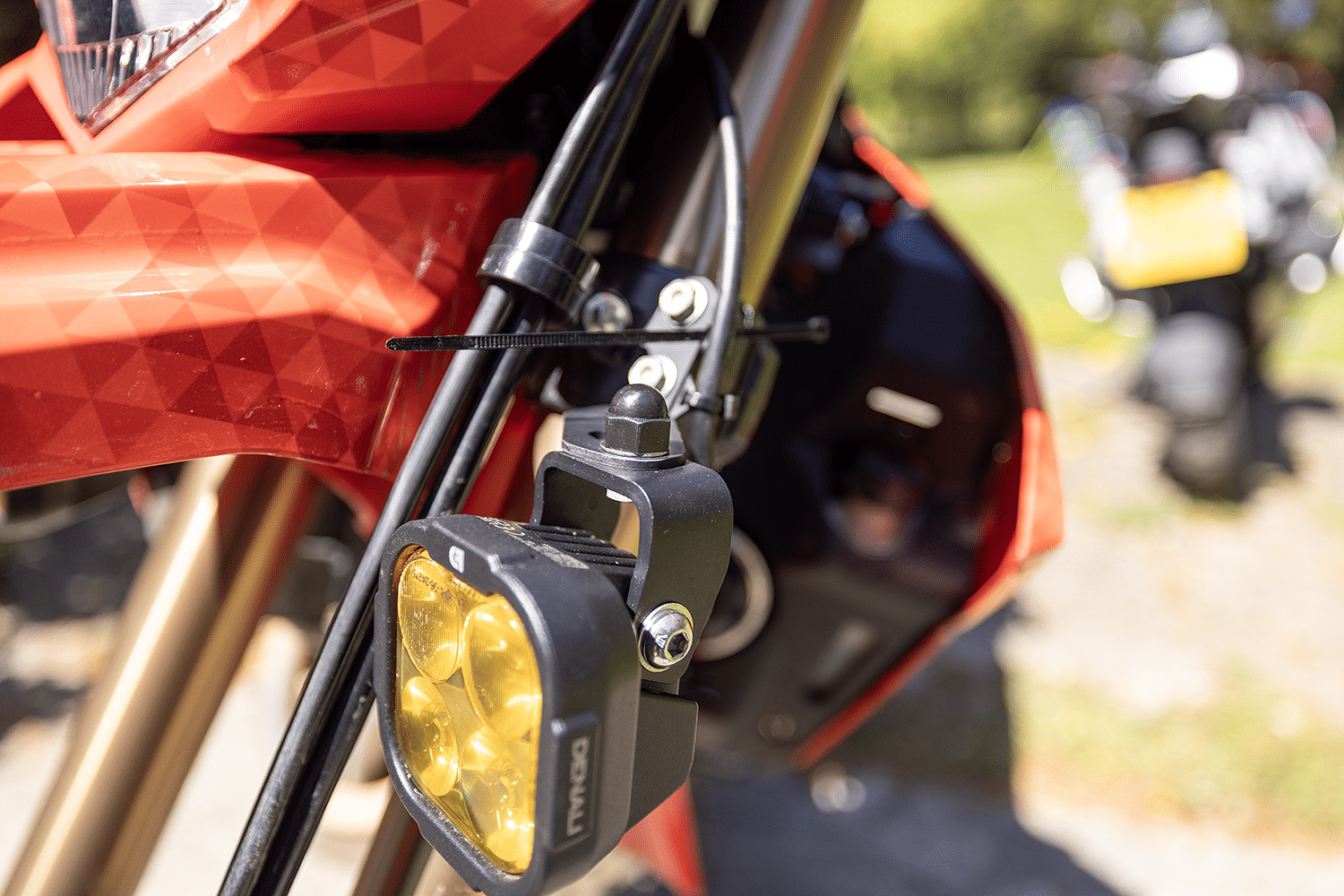

Step 5: Mount Your Lights & Route Cables

1. Attach your chosen universal auxiliary lights to the mounting points on the brackets.

2. Route the light wiring along the side of the HEX bracket.

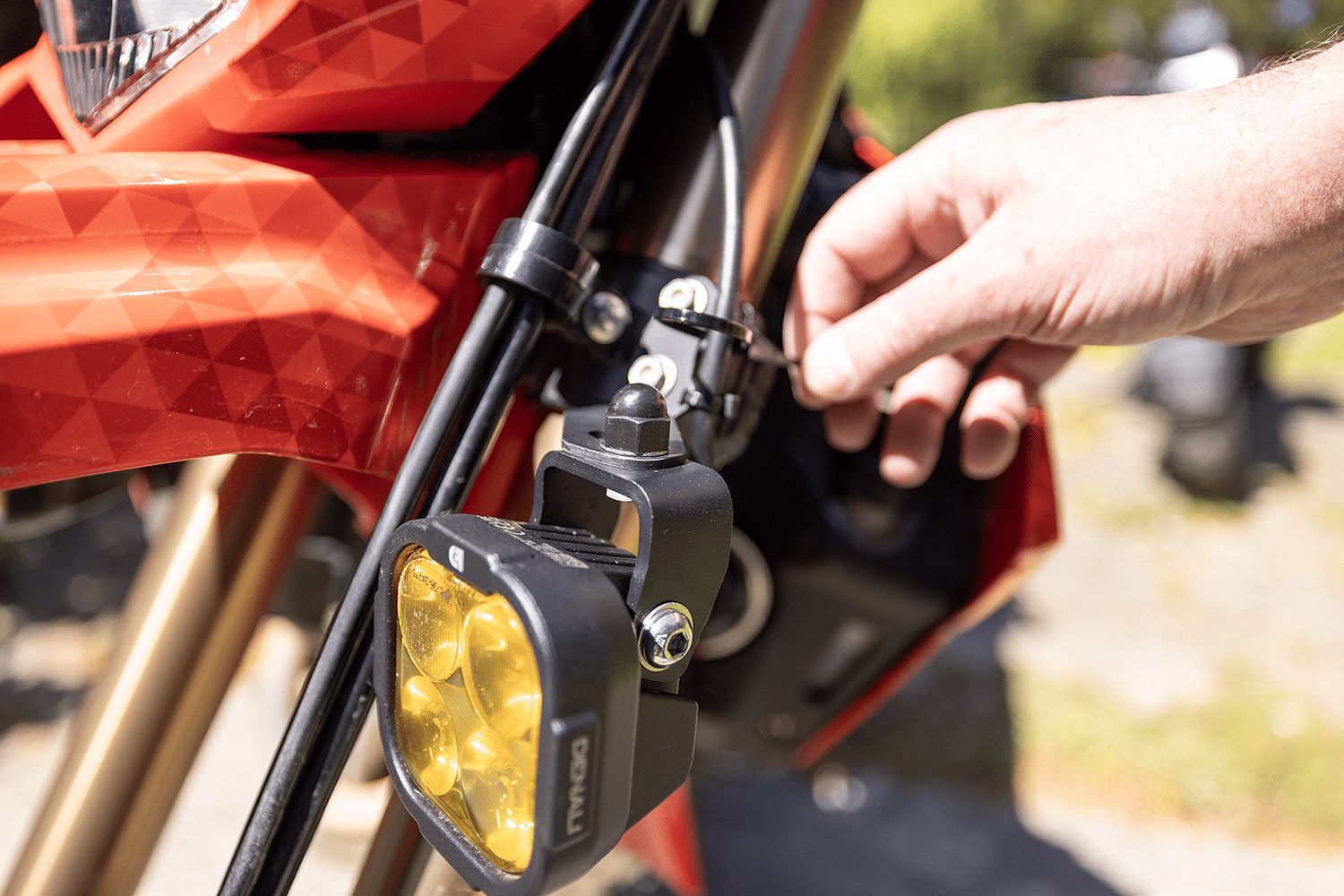

3. Thread a cable tie through the integrated slots on the bracket and secure the cable firmly. Trim any excess cable tie for a clean finish.

Step 6: Final Safety Check

Turn the handlebars fully from lock to lock (all the way left, then all the way right). Ensure that neither the brackets, lights, nor cables interfere with the motorcycle’s bodywork, cables, or brake lines.

Your installation is complete. You are ready to light up the trails!
