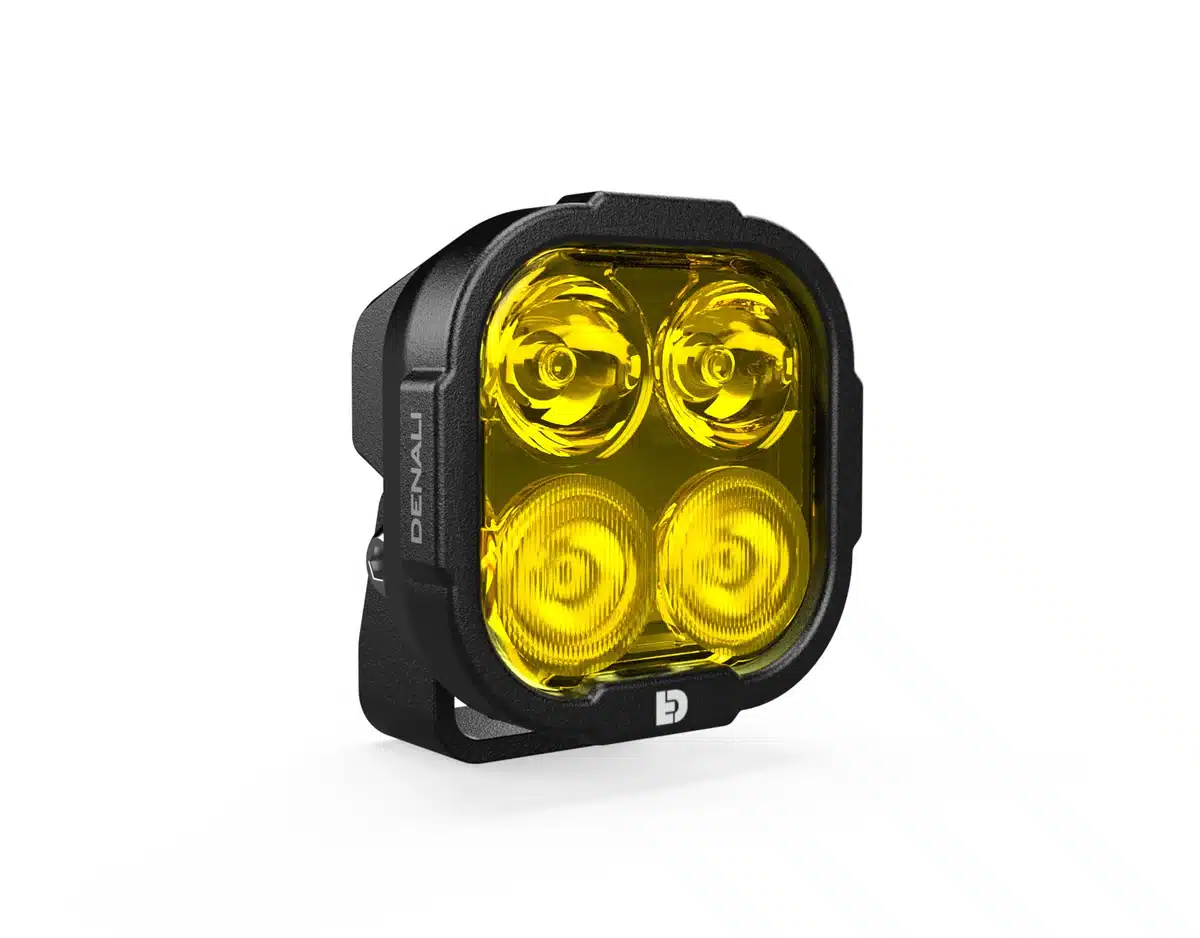

(SINGLE) DENALI DL4 DRIVING LIGHT (Selective Yellow Lens)

Introducing DENALI’s brightest and most durable motorcycle driving lights that won’t break the bank. Engineered based on a decade of customer feedback, DENALI’s DL Series Driving Lights are purpose-built to deliver best-in-class beam performance, unmatched durability, and their signature dimming technology at a price point that is more approachable to new riders, younger riders, and a growing international customer base!

How can they be this good and so affordable at the same time? Thanks to DENALI’s single-piece TIR optic and robotically sealed construction, they are able to reduce the number of parts, accelerate assembly time, and reduce the overall production costs without sacrificing any changes to their top-bin LEDs, circuitry, or optical design. The result is a indestructible & submersible light pod that can deliver more light per dollar than any of their competitors. All DL Series lamps are available in white, amber, or selective yellow beam options, and are plug-&-play compatible with all HEX ezCAN Accessory Managers.

The DL4 features a perfected hybrid driving beam and is the ideal option for your primary auxiliary driving lights on small to medilum sized bikes. It is also small and light enough that it can be mounted in lower fender applications on larger ADV bikes.

Features:

• HiDrive LEDs 6,800 Lumens Per Pair – Top-bin CREE LEDs driven at 8 watts each deliver a remarkably powerful beam in a square 4-LED package.
• Oversized TIR Optics – Perfected Hybrid Driving Beam – DENALI’s proprietary TIR optics distribute the beam of light more efficiently than traditional reflector optics, giving their driving beam unmatched distance and width from the most compact housing possible.
• Plug-&-Play Dimming – The 3-wire design uses dedicated dimming wiring for maximum reliability and plug-&-play connection to all HEX ezCAN Accessory Managers.
• DrySeal™ Sealed Beam Construction – DENALI’s patented technique robotically seals the lens and uses internal potting at the cable entry to guarantee 100% waterproof submersible performance even when connectors are removed.
• Overbuilt Not Overpriced – The 4mm thick powder-coated steel brackets & robust heatsink enable an impressive 21grms vibration rating, while the Polycarbonate lenses are reinforced with UV hard coating.
• ECE Compliant Driving Beam – DENALI’s hybrid driving beam is ECE certified for street-legal use as a primary or auxiliary high beam in the European Union. Yellow and amber lenses are not compliant for street-legal high beam use.

Specifications (Single | Pair):

• LED’s: Cree XPL HI (8W each)
• Watts: 32W | 64W
• Amp Draw: 2.7A | 5.4A
• Raw Lumens: 3,400 | 6,800
• Beam Distance: 820′ (250m) | 1091′ (333m)
• Beam Width: 157′ (48m) | 209′ (64m)
• Connector: HEX ezCAN compatible
• Color Temperature: 6000K
• Operating Voltage: 9-32 VDC
• Pod Size: 3″ x 3″ Square x 2″ Deep
• Pod Weight: 544 kg | 1088 kg
• IP Rating: IP68 & 69K Waterproof Submersible & High-Pressure Spray
• Beam Certification: ECE R149 Driving Beam (Aux High Beam)
• EMC: R10, CISPR 25, CE, UKCA Compliant

What’s Included:

• Single light pods include:
  • (1x) Light Pod w/ Mounting Hardware
  • (1x) 3-wire pigtail
• Pair of light pods include:
  • (2x) of the above light pods & pigtails

Instruction Manual Download

• PDF Instruction Manual (English)
