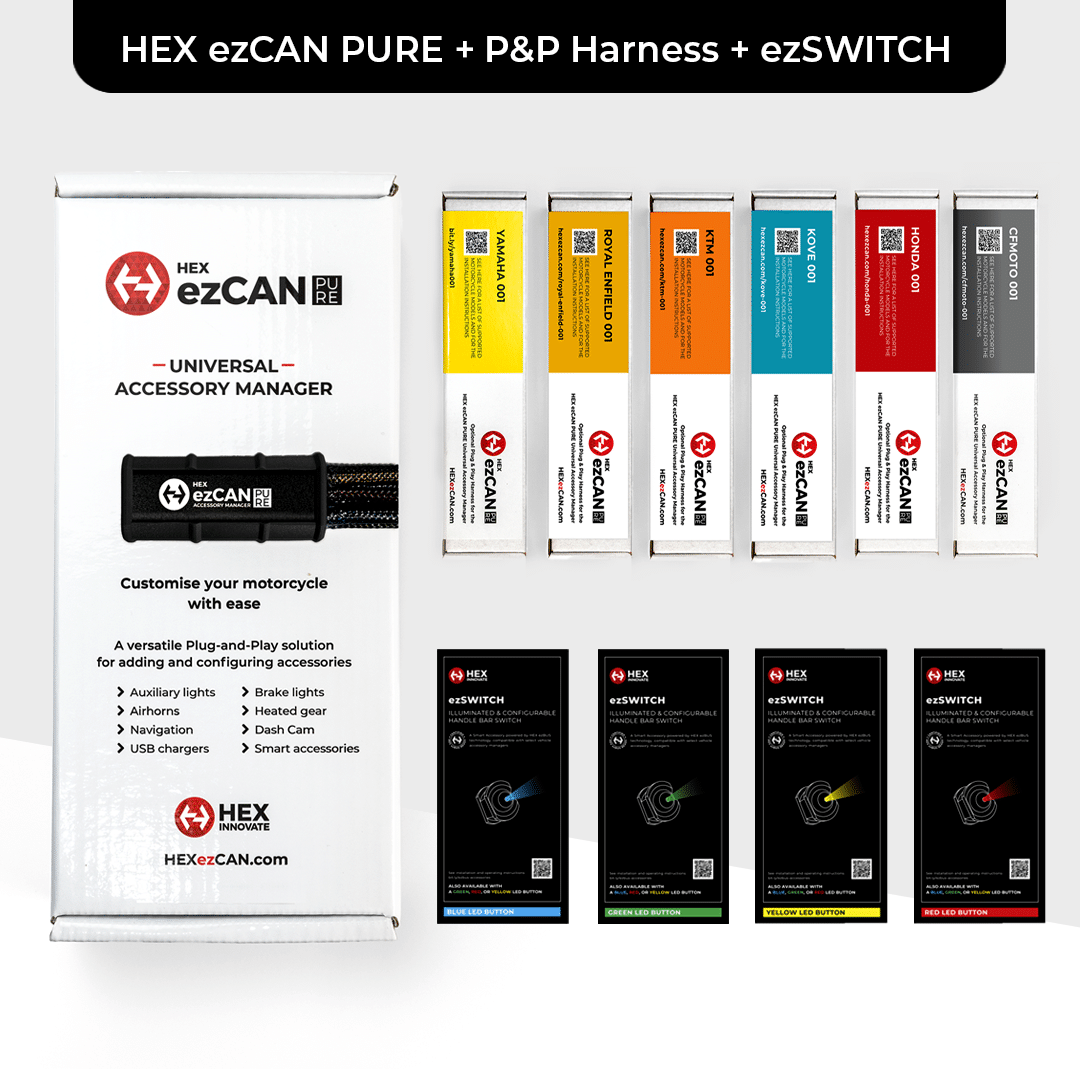

HEX ezCAN PURE Universal Accessory Manager + ezSWITCH Accessory Controller + Optional Plug & Play Harness

HEX ezCAN PURE Universal Accessory Manager + ezSWITCH Accessory Controller + Optional Plug & Play Harness

Original price was: £269.00.Current price is: £255.00. ex VAT

NEW: HEX ezCAN PURE Universal Accessory Manager + HEX ezSWITCH Accessory Controller + an Optional Plug & Play Harness

The HEX ezCAN PURE is a universal accessory controller that can be installed on almost any vehicle. It reads actual vehicle signals to provide the full range of ezCAN configuration features, including the intelligent HEX ezBUS system.



The best plug and play solution to add accessories to your motorcycle without the need to cut any wires that could void your warranty.

Adjust all your electronic accessories from the factory Aprilia controls.

  • Auxiliary lights
  • SoundBomb
  • Power your SAT Nav and/or smartphone
  • Auxiliary rear brake lights



—

Add a HEX ezSWITCH to your HEX ezCAN PURE and enjoy the convenience of being able to cofigure this handle bar mounted, illuminated switch to a selection of accessories attached to your HEX ezCAN PURE outputs.

Configure the ezSWITCH to control your:

  • Auxiliary Lights
  • Fog Lights
  • Lone Rider Motorcycle Lights
  • Auxiliary horn



Choose the harness from the four variants, each with a different telltale LED lights – BLUE, GREEN, YELLOW, and RED.



—

Make your HEX ezCAN PURE installation quicker, cleaner, and easier with the HEX ezCAN Optional Plug & Play Harness

Choose the harness option that supports your motorcycle Make and Model from the list below.

SKU: HEX ezCAN PURE + Harness + ezSWITCH
SKU HEX ezCAN PURE + Harness + ezSWITCH Category

Description

The HEX ezCAN PURE lets you power and operate connected accessories. but with an extra helping of unlimited possibility!

Model-specific HEX ezCANs listen for proprietary CAN-bus control inputs only, while the HEX ezCAN PURE listens for electrical On/Off control inputs, making it compatible with most 12-volt motorcycles, cars, SUVs, pickups, 4x4s, agricultural vehicles, and more.

Additional ezBUS Low-Power Output (JWPF Connector)
The HEX ezCAN PURE Universal Accessory Manager also features an extra low-power ezBUS circuit connection via a JWPF connector. When the white circuit is configured as an ezBUS-Ready accessory in the HEX ezCAN configuration software, riders can connect ezBUS-Ready accessories to the white circuit and connect an additional low-power ezBUS accessory to the dedicated JWPF output—such as an ezSWITCH.

—-

Included in the box:

  • 1x HEX ezCAN PURE Device
  • 1x HEX ezCAN Generic Signal Input Harness (input cables for ignition, high beam, horn, brake, and left & right turn signal)
    • 4x 15mm length adhesive heat shrink (6.4 mm ⌀)
    • 1x 40mm length adhesive heat shrink (9.5 mm ⌀)
    • 1x 1.4m length of automotive braid (4mm ⌀)
    • 1x 1.4m length of automotive braid (6mm ⌀)
    • 6 x Posi-tap
  • 1x USB C Cable
  • 4x 2-wire stub connectors (Black/Orange)
  • 4x 1-wire terminal wires (Orange)
  • 4x Blanking seals
  • 3x Blanking Plugs
  • 20x Cable Ties



HEX ezCAN PURE INSTALLATION INSTRUCTIONS – USING THE SUPPLIED GENERIC SIGNAL HARNESS:



While the HEX ezCAN PURE Universal Accessory Manager can be used on its own on any motorcycle that operates on a 12v electrical system, for a quicker and simpler installation, HEX ezCAN has developed a range of Optional Plug & Play Harnesses for selected popular motorcycle models. These pre-made harnesses connect directly to the bike’s existing factory connectors, allowing the HEX ezCAN PURE to access the motorcycle’s signal triggers without cutting or modifying the original wiring loom.

Each Optional Plug & Play Harness is designed to work exclusively with the HEX ezCAN PURE Universal Accessory Manager and supports a specified range of motorcycle models. The harness does not function on its own and is not compatible with other HEX ezCAN devices.

Please check whether a compatible harness is available for your motorcycle.

HEX ezCAN PURE Optional Plug & Play Harness, support list:

CFMOTO 001:
CFMoto 450 (2024+)



PLUG & PLAY HARNESS – HONDA 001:
Honda CRF 300L (2021-24) / CRF 300L with the LED headlight (2025+) / CFR 300L Rally (2021+)



PLUG & PLAY HARNESS – KOVE 001:
Kove 800X (2024+) / 800X Rally (2025+)



PLUG & PLAY HARNESS – KTM 001:
KTM 390 Adventure R / 390 Adventure X / 390 Enduro R (2025+)



PLUG & PLAY HARNESS – ROYAL ENFIELD 001:
Royal Enfield Himalayan 450 (2024+)



PLUG & PLAY HARNESS – YAMAHA 001:
Yamaha Tenere 700 (2025+)

HEX ezSWITCHES Accessory Controllers are available in four variants, each with a different telltale LED lights – BLUE, GREEN, YELLOW, and RED.

The HEX ezSWITCH is a compact, handlebar-mounted button with a built-in LED indicator. It’s a versatile smart switch that connects directly to the HEX ezBUS ‘white’ circuit, allowing you to control various accessories connected the user’s same Accessory Manager.

SEE HOW TO INSTALL A HEX ezSWITCH HERE:



—

Additional information

Weight415 g
Dimensions240 × 150 × 60 mm
