HOW TO INSTALL THE ezCAN

Installation Guide
for BMW S1000XR/ F750/ F850/ K1600​

This is a step by step guide to installing the HEX ezCAN (Generation 1 and 2) on BMW K1600 series bikes.

The following bikes are supported by the ezCAN for BMW S1000XR/ F750/ F850/ K1600

STEP 1

DOWNLOAD, INSTALL & CONFIGURE THE SOFTWARE

Watch a complete installation video here, or follow the step-by-step guide below.

Play Video

STEP 3

Install the ezCAN under the seat

You can secure the ezCAN with the velcro strips provided after the accessories have been plugged in.

Important notice: If you can’t find the seat- you’re in trouble!

STEP 4

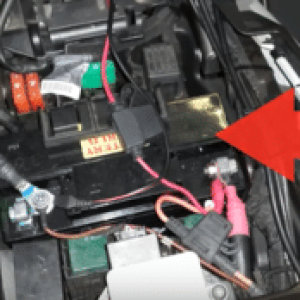

Route and connect the battery wires

The battery is located under the front seat. Route both the ezCAN power supply cables forward, along the motorcycle’s rear sub-frame, to the battery. Disconnect the battery wiring harness terminals from the battery and connect the ezCAN wires to the battery before re-connecting the factory wires.

IMPORTANT NOTE: First, unplug the battery negative wire and only attach it at the end again. This is good practice whenever you work on your bike’s electronics.

BMW ezCAN Installation Step 5 1

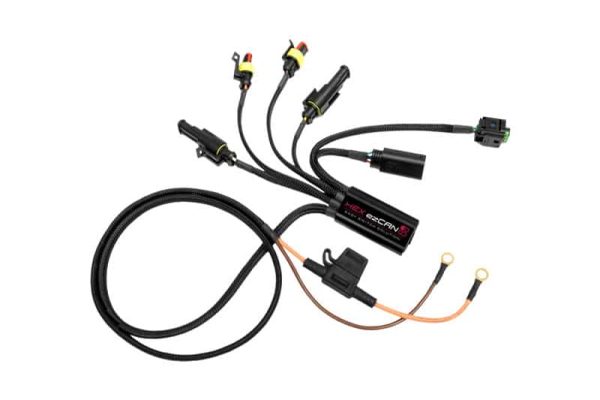

HEX ezCAN Power supply cables

STEP 5

INSTALL THE ezCAN UNDER THE SEAT

IMPORTANT NOTE: Both the male and female ezCAN CAN-Bus terminals must be connected correctly. Do not connect to any other component or to any other part of the motorcycle’s wiring harness. If you do, the ezCAN will not function.

STEP 6

Connect accessories under colour coding

The HEX ezCAN kit includes eight stub connectors with male connection terminals. The eight stub connectors are made up of the following types:
– 4 x three wire stub connectors
– 4 x two wire stub connectors

If your auxiliary lights have three wires use the three wire stub connectors. If not the two-wire stub connectors must be used for accessories that have power and ground wires only.

If you are not going to use one or more of the circuit functions it is recommended that you install a blanking plug over the unused output. The HEX ezCAN product contains two blanking plugs.

The colour-coding on the output wires must match the colours in the output configuration you select from the HEX ezCAN circuit function software. Red to red, yellow to yellow, etc. Black wire is Battery Negative and the Red, Blue,Yellow and White are the Positive Supply.

Connect the terminals of the high-power stub connectors to the correct female terminals on the ezCAN.

Connect the spotlight’s ground wire to the ground wire of the stub connector.

If you are installing spotlights equipped with a third wire for light-intensity control, connect the spotlight control wire to the control wire of the stub connector. If the spotlight only has two wires, use the two wire stub connectors.

STEP 7

Test the installation

Most newly installed accessories can be tested simply with the ignition “ON”, but some brake functions will require the bike to be in motion and travelling above a certain speed. For example, emergency braking requires deceleration of more than 21km/h/s (kilometres per hour per second).

SAFETY NOTICE: Test and check your installations and accessories in a safe, controlled environment. Caution is advised at all times. Extra vigilance is required when testing new features or accessories. You do so at your own risk.

DISCLAIMER: HEX ezCAN is not liable for any injury or damage howsoever caused and all products and services are used at your own risk.
